Car Lift Accessories by BendPak

Third Wheel Kit

SKU# 5210247

Third-Wheel Kit / Includes Wheel Trough and Aluminum Ramp


Lifting and storing your Polaris Slingshot® or other 3-wheeled vehicles on a four-post lift is now possible with BendPak’s Third Wheel Kit. Includes heavy-duty stainless steel wheel trough and a light-weight aluminum ramp.

Third-Wheel Kit for Storing Three-Wheeled Vehicles
User Manual Download
Sales Sheet Download
Warranty Download

Being third wheel is no longer awkward!

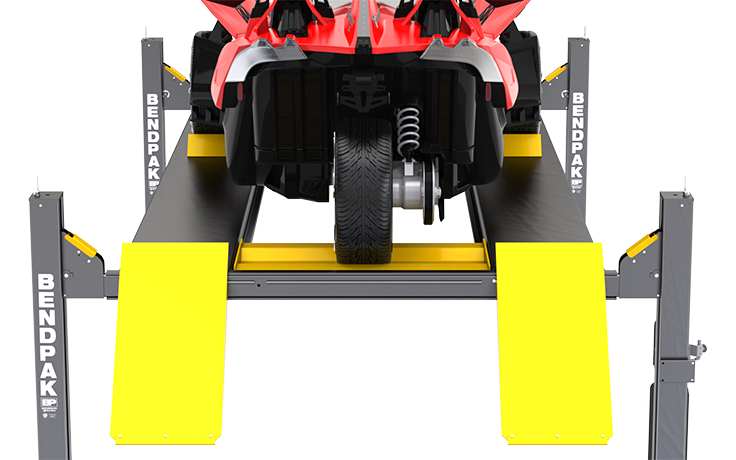

If you own a four-post lift for storage and vehicle maintenance, chances are that you have either tried or thought about using the four-post lift for lifting and storing three-wheeled motorcycles like the Polaris Slingshot® or ATV’s—maybe even your boat. Because four post lifts were designed for tandem wheel axles, they are void of any supporting structure positioned midway between the runways—exactly where a Polaris Slingshot® wheel would dwell or the tongue or jockey wheel on your boat trailer.

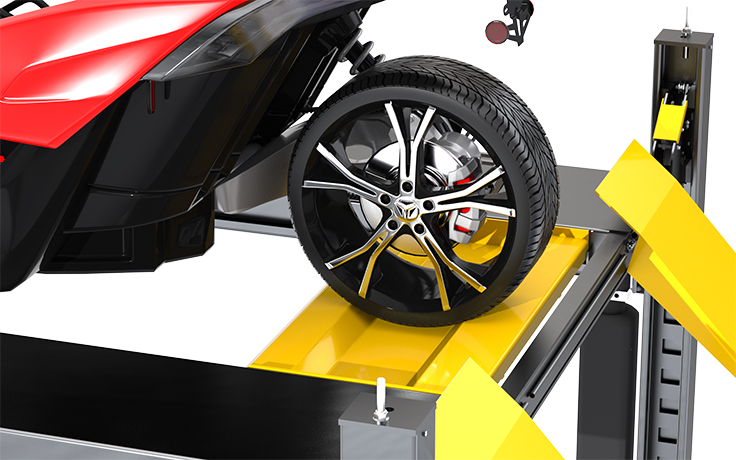

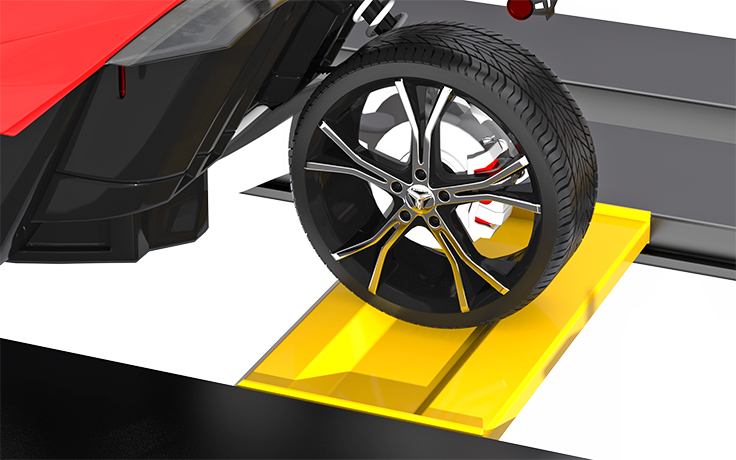

By bridging the runways with a purposefully built wheel trough and sturdily made support beam, BendPak’s Third Wheel Kit allows you to safely and securely support your Polaris Slingshot® or other 3-wheeled vehicles. The heavy-duty welded-steel wheel trough rests securely on the runway utility channels making installation fast and easy. Rugged support clips help keep the trough securely in place. Although this four-post lift accessory was originally made for Polaris Slingshot® owners, any three-wheeled motor vehicle or motorized trike can take advantage of the Third Wheel Kit’s versatility.

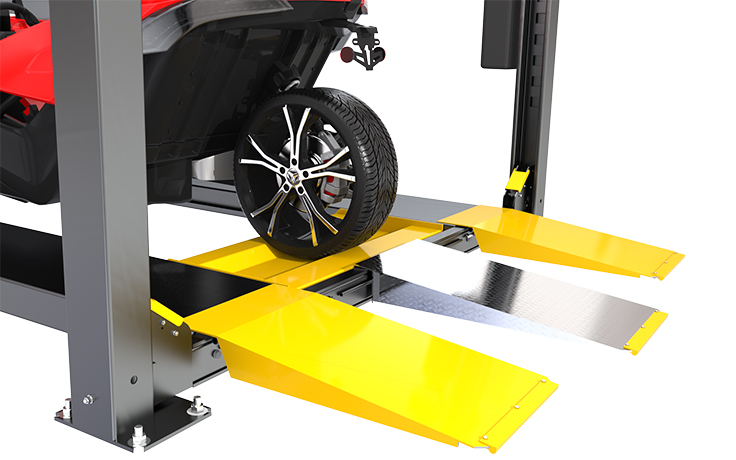

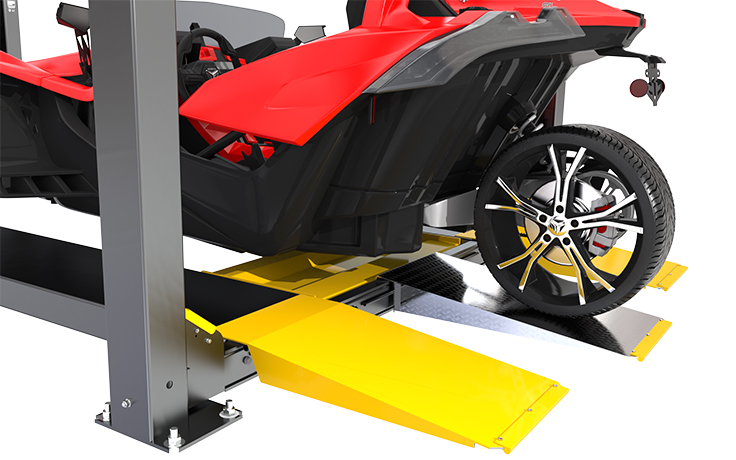

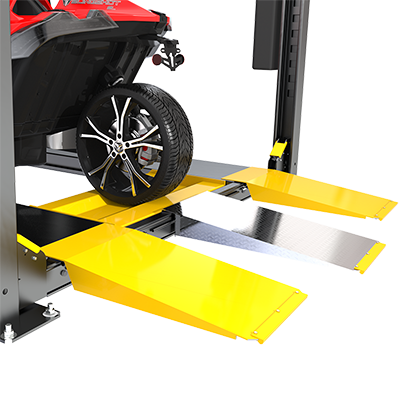

Included in the kit is a lightweight approach ramp made out of aluminum tread-plate that is easy to install and remove for storage. It attaches directly onto the four-post lift cross tube allowing the steering wheel of your Polaris Slingshot® to roll effortlessly up the ramp and settle comfortably into the recess of the spacious wheel trough. The low angle of the ramp makes it easy to accommodate low ground clearance motorcycles or other three-wheel vehicles. Fits BendPak models: HD-7PXW, HD-9XW/XL/SWX, HD-9AE, or HD-973P/PX four-post lift models with the runways configured in the wide setting.

Features

  • Fits BendPak lift models: HD-7PXW, HD-9XW/XL/SWX, HD-9AE, or HD-973P/PX in WIDE runway setting only
  • Heavy-duty welded-steel construction
  • Durable powder-coat finish
  • Wheel trough is 2.25” deep to safely cradle wheels of varied diameters
  • Light-weight aluminum approach ramp with underside supports feature high-density polyurethane guard to prevent scratching of floor surfaces

*IMPORTANT NOTE: This accessory is not compatible with four post lifts with airline kits installed. For lifts with airline kits installed, the rear coiled air hose will have to be removed prior to installing the third-wheel bridge plate.

Specifications and Dimensions Specifications
Warranty 5-2-1 Warranty
Lift Balancing Safety Balancing Safety
Best Car Lift Guide Best Car Lift Guide
Things to know Buying a Car Lift

Third Wheel Kit Specifications

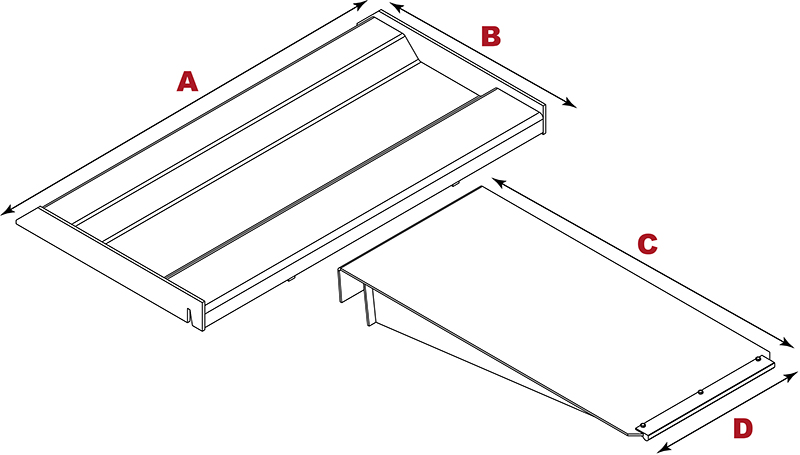

Third Wheel Kit specs diagram
A - Overall Width
43.5” (1,106 mm)
B - Overall Length
23.75” (600 mm)
C - Approach Ramp Length
37.75” (959 mm)
D - Approach Ramp Width
18” (457 mm)
