Floor Jacks by Ranger

RBJ-30TL

SKU# 5150443

30-Ton (27,216-kg.) Telescoping Air Bottle Jack


The true king of rolling floor jacks, the Ranger RBJ-30TL rules the garage floor with its mighty 27,216-kg. lifting capacity.

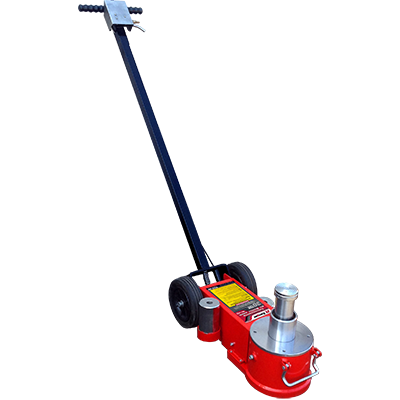

RBJ-30TL Air Bottle Floor Jack by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Take Air-Hydraulic Technology to the Extreme

The RBJ-30TL takes Ranger's air-hydraulic technology to the extreme. This is our most powerful garage floor jack, easily managing a hefty 27,216-kg. in the first phase position and 13,608 kg. at the ​305 mm max lifting height. The RBJ-30TL garage floor jack was designed for heavy commercial use and features a long “T" handle for easy positioning, as well as large rubber wheels for smooth manoeuvring around the garage. Floor jacks as powerful as these essentially offer you the lifting power of a car lift without burdening your garage space. Two jacks working together can simultaneously lift a ​54,431-kg. vehicle into the first position and a ​27,216-kg. vehicle in the second position. For a compact hydraulic floor jack, we’d say that’s pretty impressive. Since it accommodates other vehicle types too, you’re completely safe and covered with this jack.

As always with Ranger, safety is just as important as an excellent product, so the RBJ-30TL has a built-in safety valve to prevent overloading. With a low profile ideal for low ground-clearance vehicles and the included additional lifting saddles, the RBJ-30TL is the versatile heavy-lifter you've been looking for. In fact, its ​165 mm collapsed profile is excellent for virtually all light-duty trucks and SUVs, making it the best floor jack for heavier classes of vehicles.

While it’s designed for heavy-duty commercial applications, this jack can be used to lift smaller vehicles with ease. This product offers infinite versatility up to the rated lift capacity, so it may be one of the last floor jacks you ever need!

Features

  • 27,216-kg. lifting capacity
  • Designed for heavy commercial use
  • Air-hydraulic operation
  • Lowered profile for low ground-clearance vehicles
  • Hardened alloy-plated telescoping ram for maximum durability
  • Heavy-duty steel saddle
  • Large rubber wheels for easy manoeuvrability
  • Compact design fits easily between tandem wheels
  • Dead-man controls for safe operation
  • Long "T" handle for easy positioning
  • "T" handle can be locked in three different positions
  • Double-sealed for longer service life
  • Air valve with integrated filter
  • Heavy-duty air motor provides maximum power
  • Sealed hydraulic unit prevents contamination
  • Built-in safety valve prevents jack from being used beyond its rated capacity
  • Additional lifting saddles included

Specifications

RBJ-30TL specs diagram
Lifting Capacity - 1st Stage
60,000 lbs. (27,216 kg)
Lifting Capacity - 2nd Stage
30,000 lbs. (13,607 kg)
Lowered Height
6.5" (150 mm)
Raised Height
6” - 12" (152 mm - 305 mm)
Chassis Width
12.5" (318 mm)
Chassis Length
22.5" (572 mm)
Shipping Weight
113 lbs. (51.5 kg)
Shipping Dimensions
24" x 13" x 9" (610 mm x 340 mm x 200 mm)
